I have a slidedeck for ORDS that I use for customer and conference presentations. My co-worker @sqlmaria remarked that it was a bit confusing, and I had to agree.
I tend to skim over this slide, because I’m all excited to get to the fun, sexy SQL – JSON bits, but this is important. So let’s take a look at the BIG picture, and then let’s break down all the components, and see how they fit back together.

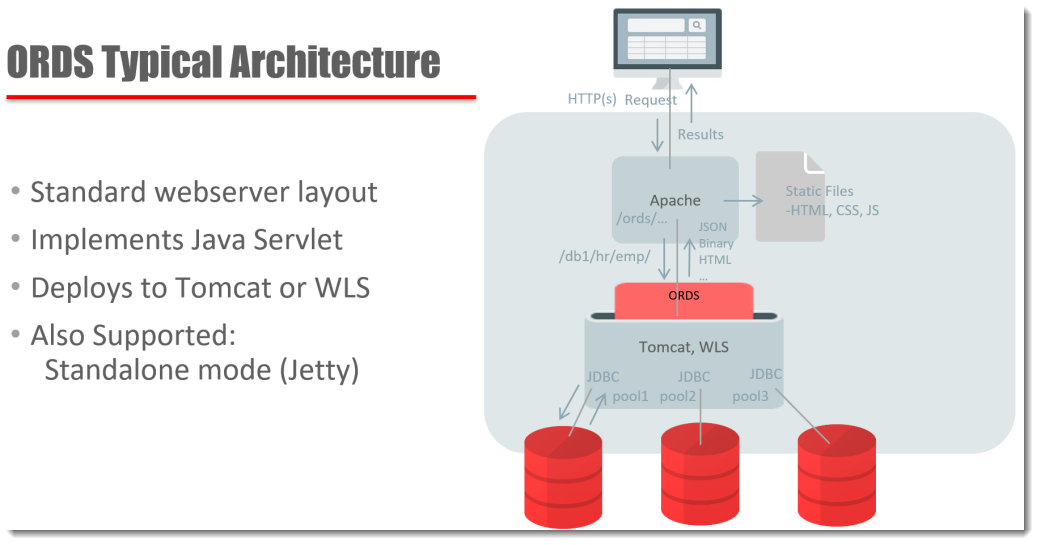

The Big Picture
- the consumer – a person or automated process, originating from a device with access to HTTPS, somewhere. But we often imagine a very smart person clicking or browsing around on their phone or laptop.
- other things belong to something called /ords .. which is known to be served by our Java Servlet living in Tomcat. It’s /ords because the servlet is defined by an ords.war file
- ORDS is a java program, and it has a set of configuration files. These files include definitions of JDBC Connection Pools to one or more databases. The URI of the request tells ORDS which pool to send the request to.
- A connection from the appropriate pool is borrowed. The database user, also specified in the URI, is used to Proxy Connect from the connection pool user (so start as ORDS_PUBLIC_USER and end up as HR)
- The next part of the URI tells ORDS how to find the RESTful Service that is going to be executed. That service has a SQL statement or block of PL/SQL code attached to be ran. It executes, and results are returned to ORDS.
- The connection pool HR session is ‘closed’, and returned to the pool to be used by a subsequent request.
- ORDS, if necessary, transforms the JDBC resultset and/or standard output to JSON. RESTful Service Handlers also support Resource Media types, where the results are returned raw along with the proper Mime/Content types (image/png)
- The webserver delivers the payload back to the HTTPS requester
But Wait, What About Security?
Ok, that’s a whole other topic, but, up at the very front, when the request is received by Apache/Tomcat, the first thing that will happen is that you will be Authenticated. Yes, you are who you say you are.
Then, the request will continue as previously described, except when the RESTful Service definition is defined in the database, we will also see what privileges are required. At that point, ORDS will AUTHORIZE the request based on the USER who was previously Authenticated based on if they have the required Roles or not.
This gets even more fun when we’re talking about OAUTH2 – tokens!
But the important thing to remember here is that the Web Tier handles Authentication.
Ok, But What About this Standalone Stuff?
It gets a bit simpler. In your midtier instead of having Apache/Tomcat or says WLS running, you JUST have ORDS. ORDS handles itself AND the Webserver bits.
What to you need to know about running ORDS in standalone? Probably the biggest thing that comes into play is that pesky Authentication stuff. Remember how that happens with the webserver, before your request even makes it to ORDS? Well, in Standalone mode, ORDS is the webserver. So if you’re not OK with database user authentication or first party user authentication – neither of which are recommended by us, tying into your corporate application auth schema might get very hard, if not impossible if you don’t pick up Tomcat or WLS – which already have a rich library for plugging into things your LDAP and SSO interfaces.
Good news though – OAUTH2 will still work just fine in Standalone, and we have a Hands-On Lab in our DevDay VirtualBox appliance showing how to use this.
What about Docker? Or What if I want to run ORDS on the same box as my database?
That’ll work too. You just have to decide if it makes sense. For example, if your primary database server goes down, then you just also lost your webserver and ORDS too.
It’s much better to have this running in the mid tier, then if the primary database server goes down, you can then fail-over to your standby database.
And even better, have ORDS deployed on two mid-tiers, for load balancing and failover.
So what should you do? What are your up-time requirements, your load requirements, and how much money do you have?
More Pictures and Bullet-points: the Slides!
That talk I referred to earlier? Here are the slides. If you have any questions, just ping me. And I’m always happy to do customer webinars, demos, or just Q&A’s via email if you’d like.
