If you’re wondering why I would bore everyone with my pictures and frequent status updates/tweets from the past week – it’s so I could document the process of refurbishing my deck, or what some would call a porch.

When my wife and I go to take a vacation, buy a car, do anything – we try to read personal blogs and reviews online to get the real story. I want to pay that treasure trove of information back so to speak, hence this post. So if you’re curious about what it takes to tackle this sort of project, read on.

Skills/Equipment/Manpower We Possessed

I took the old decking out by myself. I’m about 230 lbs, more than 6′ tall, and pretty healthy. This took about 8 hours over two afternoons. I used a 7 foot long pry bar – some serious hardware – to pop the boards out. In many cases, I could simply wedge it under the deck board, and slam it down, and an entire section would pop out of the joist. In many other cases, it took more convincing. This wasn’t hard, but it put a lot of stress on my arms and back.

Three of us put the deck back together. My wife has two engineering degrees. Her father also has two engineering degrees. Lots of brainpower available here. Also, her dad ran the public works department for a county for more than 20 years – so lots and lots of practical experience on hand.

We had a compound mitre saw, a skilsaw, 2-3 crowbars, a framing hammer, 3 cordless drills, a corded drill, lots of sawhorses, a power sander, an angle grinder, a 10×10 Coleman canopy tent, a Ford F-150 pickup truck, outdoor speakers and lots of iTunes playlists, plenty of water and cold beer.

Tip: Get a white colored pencil to mark your cut lines with! Way easier to see on the dark Trex boards than regular pencil.

Oh, and we had a full-time babysitter to watch our two young kids. Thanks Linda!

Why We Did This

Our deck was relatively young – it was built in 2005. However, the pressure treated boards must not have been adequately maintained before we bought the house. I had power-washed the deck every other year and had it stained a few times. The boards just rotted. We’re going to be in the house for a long time, and we wanted something that would look nice and require little maintenance.

More bad deck boards
More bad deck boards
The deck boards were in bad shape
The deck boards were in bad shape

Things We Learned

The two most important things:

  1. The hidden fasteners have to be put in JUST right. Wedge them into the grooved board, then bend down the bit that is screwed down. We didn’t do this on the first board and couldn’t get the second board to fit nearly close enough. Watching the official TREX YouTube video helped immensely, and we should have watched that first.
  2. When pre-drilling holes for the boards that need screwed down – DO NOT pre-drill through the underlying framing wood. ONLY pre-drill through the TREX itself. The screw won’t seat in the board properly. Instead of sitting down flush with the board, it will stop at the top of the board and just spin. I had to call the the place that sold me the screws to find this out. So about a third of our screws look like crap.

If it doesn’t look or feel right – stop everything and pick up your computer or your phone. It’s not right, and it will be much easier to stop and find out why. We didn’t do this, and now I’m going to see every screw that’s not flush with the boards and get upset. Oh well.

The Process

How much time did it take?

Well I spent about 8 hours taking the deck apart.

And then the 3 of use spent 8 hours the first day, 10 hours the second day, 8 hours the third, and another 6 hours on the fourth day. That’s like 104 man-hours. We supposedly saved four or five thousand dollars in labor, but don’t do the math here or you might get a bit upset. The main thing is that we got what we wanted, and there won’t be any surprises later.

Now for some pictures…

This 7 foot+ pry bar made the destruction of the old deck much easier
This 7 foot pry bar made the destruction of the old deck much easier
Most of the joists, once exposed, were OK.
Most of the joists, once exposed, were OK.
This joist wasn't sitting on ANYTHING before. We think a lazy gas person cut the board to sneak a gas line in. Awesome...
This joist wasn’t sitting on ANYTHING before. We think a lazy gas person cut the board to sneak a gas line in. Awesome…
These monster lag bolts had to be accounted for when putting in the additional framing
These monster lag bolts had to be accounted for when putting in the additional framing
The border pattern Sheri wanted to put in required a lot more framing.
The border pattern Sheri wanted to put in required a lot more framing.
These were the first boards to go down - we screwed them in as there was no way to attach clips
These were the first boards to go down – we screwed them in as there was no way to attach clips
I sat, kicked in the boards, and then drilled these clips in - but my wife was able to go MUCH faster by using her hands to lock the boards in and drill on her knees. I liked locking the board in with my feet when they needed to be 'encouraged' to go straight.
I sat, kicked in the boards, and then drilled these clips in – but my wife was able to go MUCH faster by using her hands to lock the boards in and drill on her knees. I liked locking the board in with my feet when they needed to be ‘encouraged’ to go straight.
The first board took FOREVER to go in, but then when we got rolling, we were able to put in a 20' board in less than 10 minutes.
The first board took FOREVER to go in, but then when we got rolling, we were able to put in a 20′ board in less than 10 minutes.
This was end of construction day #2 - we got much further than we thought we would.
This was end of construction day #2 – we got much further than we thought we would.
Ah, the dreaded last 10% - what to do here?
Ah, the dreaded last 10% – what to do here?
Remember those 'floating' stringers? Yeah, we fixed that up a bit, too.
Remember those ‘floating’ stringers? Yeah, we fixed that up a bit, too.
My wife used a website (and her brain) to calculate exactly how to cut the stringers to give us the rise/run we needed with the proper clearance and all that jazz.
My wife used a website (and her brain) to calculate exactly how to cut the stringers to give us the rise/run we needed with the proper clearance and all that jazz.
The stairs with stringers and toe kicks - this was worth the effort
The stairs with stringers and toe kicks – this was worth the effort

It started raining on us as I screwed down the steps – this we managed to get our shade tent up on the deck to protect us from the rain too 🙂

The stairs, finished
The stairs, finished

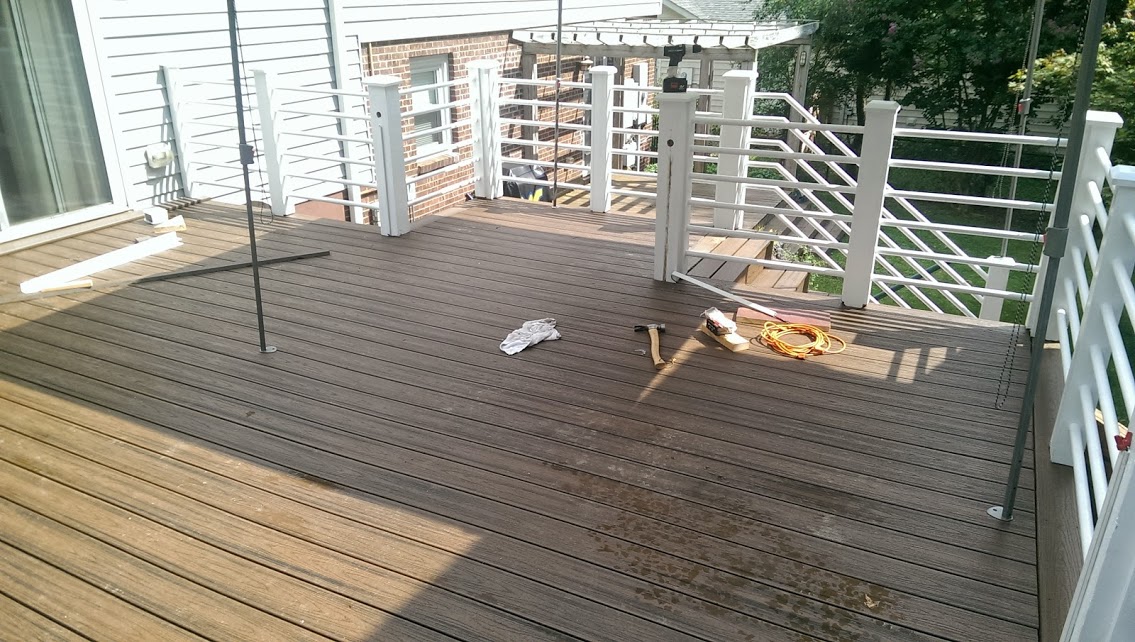

Finished, mostly
Finished, mostly

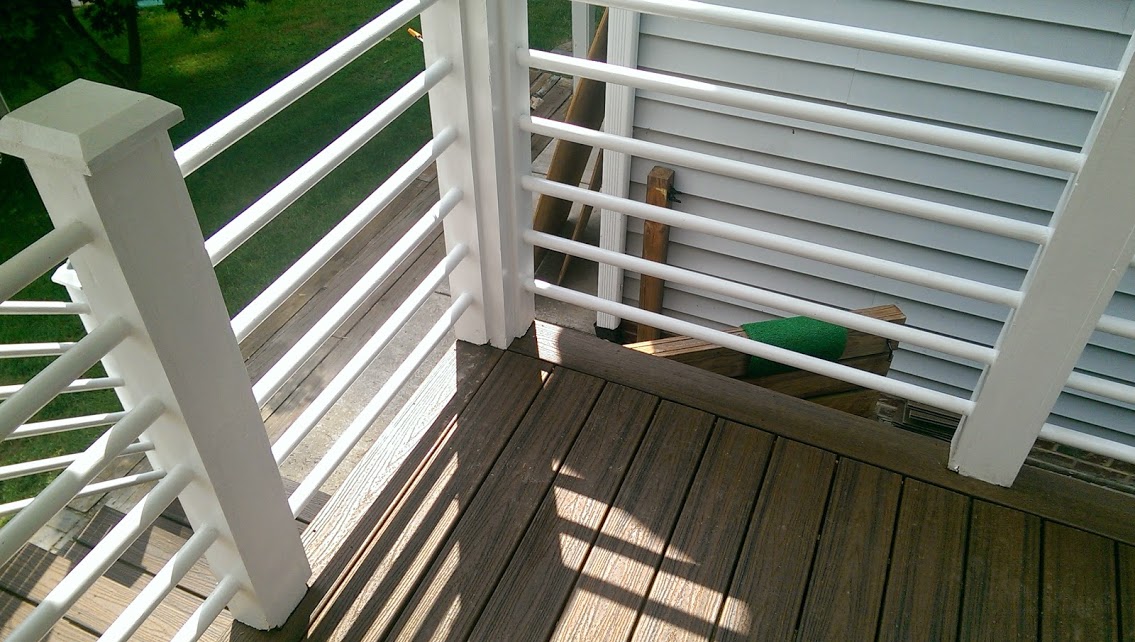

Good corner shot
Good corner shot

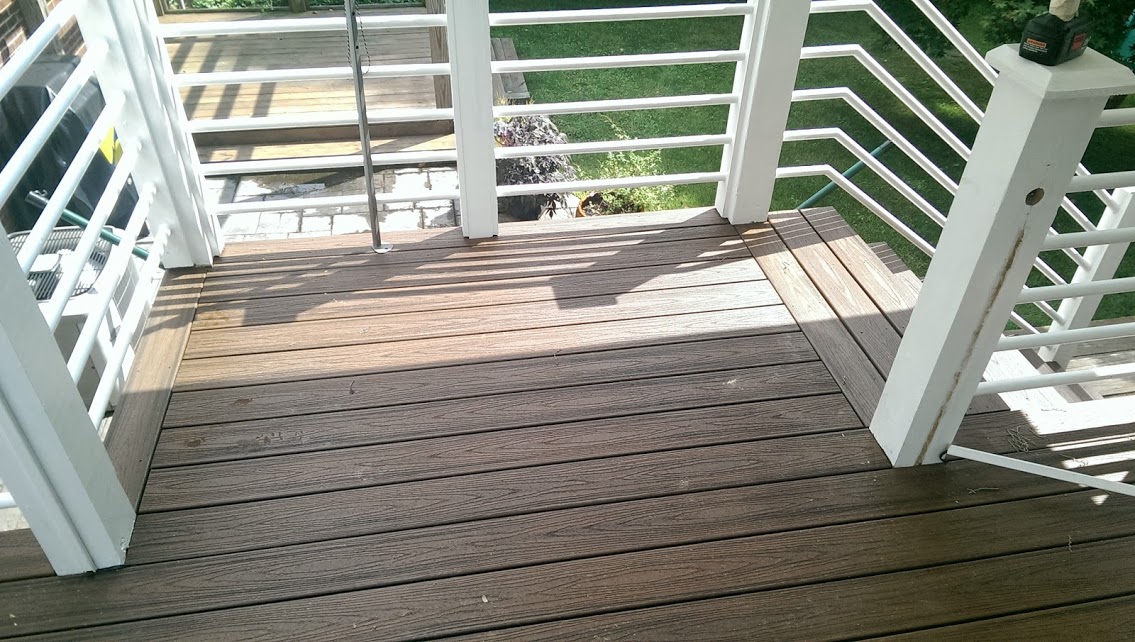

The top of the stairs
The top of the stairs
Stairs, looking down
Stairs, looking down
Celebratory beer
Celebratory beer

In Summary

There are a few things we’re not happy with. I think we can fix them up – but later. I have a few things left to finish, rewire the lighting, get the gas grille put back in, and rehang some screen doors.

I was expecting this to be a lot worse than it was. If I didn’t have the help, I would have never done it myself. But I’m glad that I did have that help and did do that project. It’s not often you get to spend that kind of qualify time with family and building cool stuff.

Bonus: A Few More After Pics

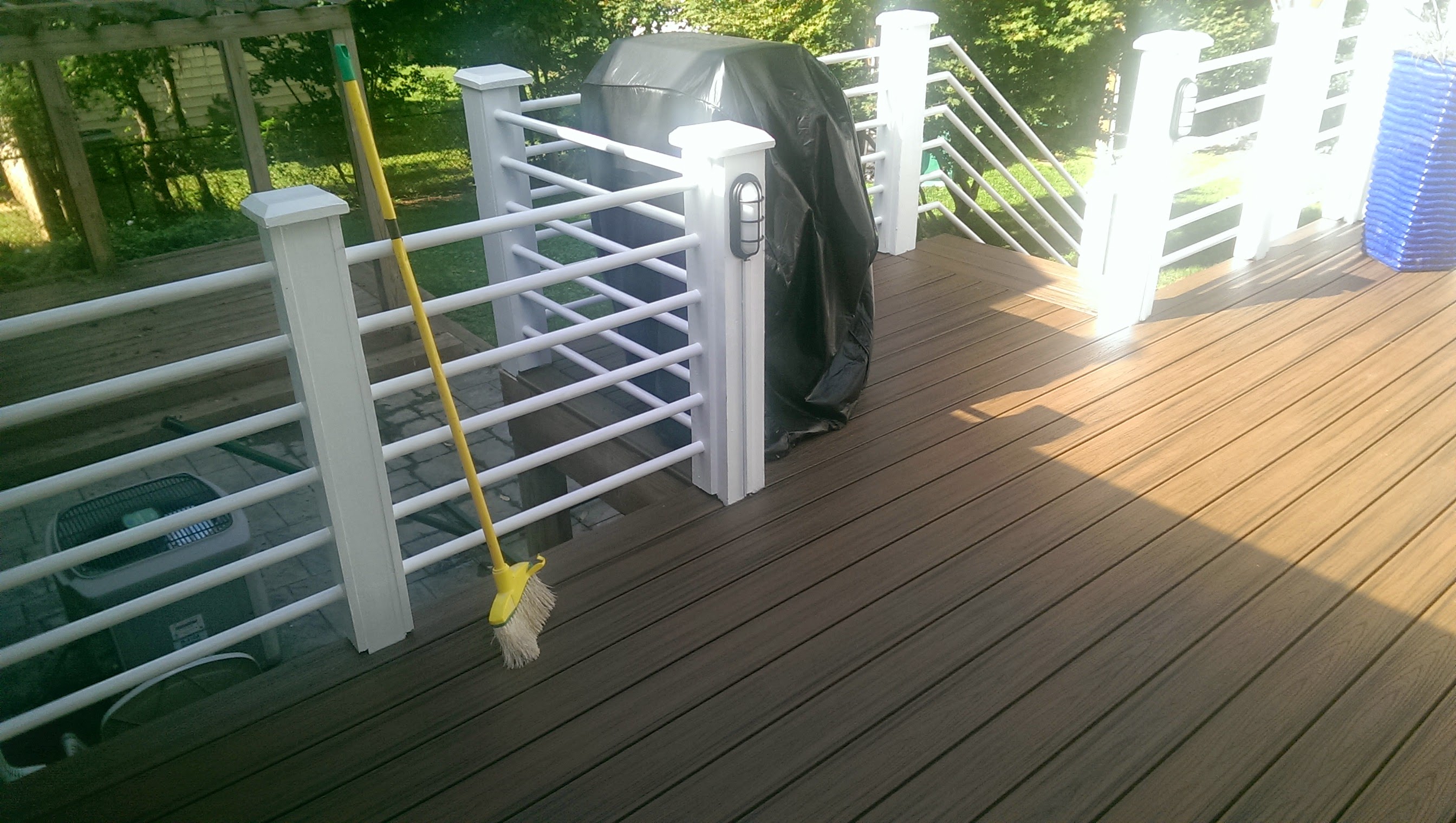

IMAG0784

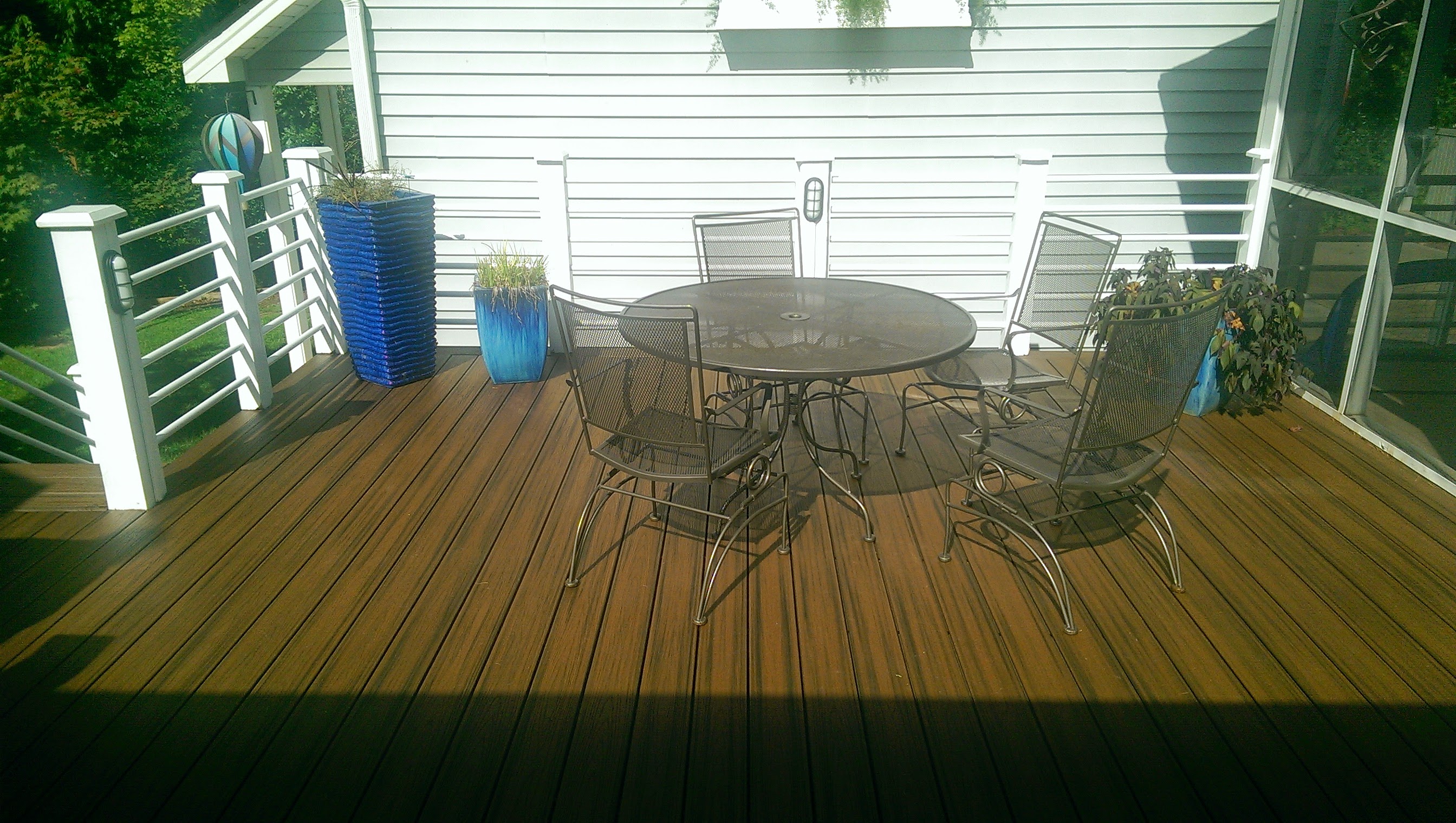

IMAG0785

IMAG0786

IMAG0787

Author

I'm a Distinguished Product Manager at Oracle. My mission is to help you and your company be more efficient with our database tools.

13 Comments

  1. Thank you so much for explaining about the screws. We were drilling all the way in and some were working but more weren’t and we couldn’t figure it out. We figured someone else must have had that problem too and your post saved us so much more frustration. I can’t figure out why they could not put those directions on the screws!

    • You just made day! I was wondering if I was silly to write all of that, but if it helped one person, worth it!

      I just had to repair two of our stairs last month, but the stringer rotted…the Trex still looks brand new 6 years and counting 🙂

  2. Michael Anspach Reply

    Hi Jeff, thanks for sharing. I am 58hrs into a 16×12 deck pressure treat to trex makeover. Framing wad all good for deck but 2 sets of stairs are being completely replaced. Also all new posts and railings being installed. Currently have all deck replaced and all stairs framed, trex cut for 1 set of stairs. So I have 2 sets of stair railings, stair deck boards to screw down and then fascia installations and then lattice to secure underneath. I’m guessing 3 more days. 2 for stairs and railings, fascia and 1 for lattice. Cheers!

  3. What was the joist spacing of your old deck? did you have to move them closer to meet trex specifications of 12in?

    • We we’re at the bleeding edge of what Trek wanted. We made the existing joists work, but did shore them up.

  4. Jimmy Alexander Reply

    i want to do the same thing. my old wood deck looks like crap and i want to Trex it. trying to figure out where to begin!

  5. Hi Jeff, we had a few times where our screws didn’t go flush into the composite and it looks bad (it just kept spinning). I’m going to try and predrill as you mentioned to correct this. How big of a drill bit did you use?

    • I can’t remember…but I do know I went very conservative to make sure the screw would ‘bite’ as I did have the spinning problem too – until I realized I was going too deep.

      I called a TREX 800# and they clued me into that. I wish I had just called earlier – it would have made 2 days of screwing gone much smoother!

  6. Loved this post! Did you cover the outside edge of the 2X10 floor frame with Trex too? I have been thinking about doing my deck and wasn’t sure what would look better, stain the 2×10’s to match or cover them with Trex.

    • We did not.

      I think we’re going to stain it. The color should be pretty easy to match, and we weren’t super hot on the additional materials cost and labor, TBH.

  7. Jeff,

    Good story. I think we all either go through that or know some one who has.
    I can’t tell if water will puddle on your deck or not. But if you are using TREX, it may not matter that much.

    Fred

    • Water does stand a bit, but the deck gets lots of sun exposure and it dries quickly – so I’m not worried. Or at least I’m not worried now with the composite materials.

Write A Comment
